Biolase

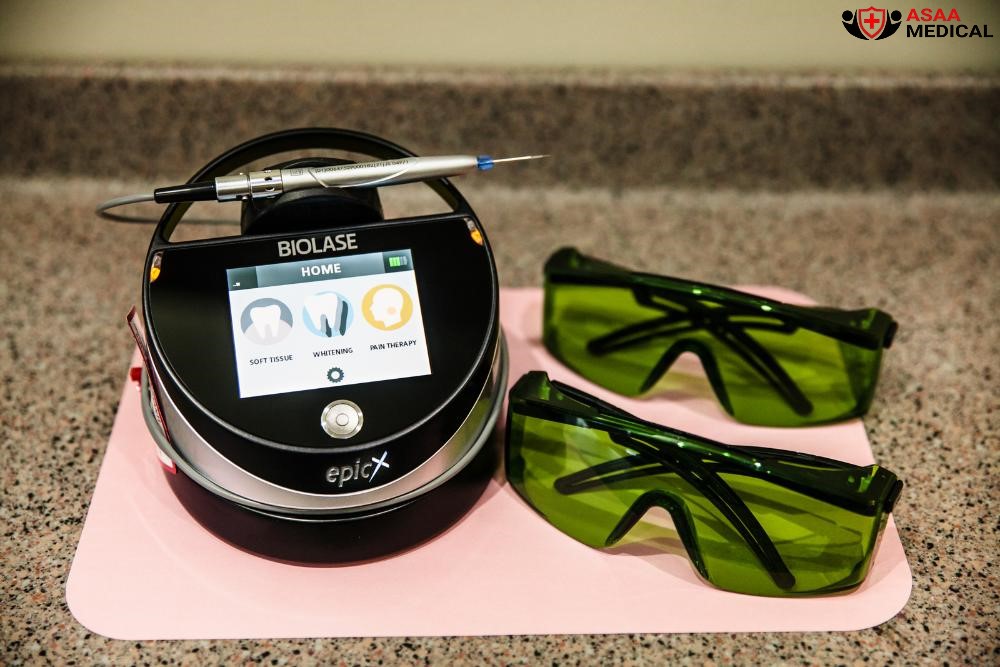

Introducing BIOLASE EPIC X, the diode laser solution that delights your patients, faster. EPIC X features innovations such as pre-initiated tips, laser-assisted whitening, and temporary relief of minor pain, all from a single diode laser solution.

Surgery, Pain Relief and Whitening At Your Fingertips
Epic X features three distinct treatment modes and 30 clinical indications, greatly expanding the utility of your Epic X laser. You have access to Surgery, Pain Relief and Whitening procedures from a single device, ensuring quick payback and long-term ROI.

Create Whiter Smiles Faster
In-office teeth whitening remains in high demand and can be a steady, reliable source of revenue for practices. With affordable per-patient costs and dramatic results in as little as 20 minutes of chair time, your practice can begin benefiting from laser whitening today.

Provide Pain Relief Faster
Epic X is cleared for temporary relief of minor pain, including pain associated with TMJ or other thermomandibular disorders. And with patented handpiece attachments to simplify the procedure, it’s a snap to provide pain relief faster.

Start and Finish Laser Surgeries Faster
Epic X marked the debut of BIOLASE’s patented pre-initiated tip to complement our standard non-initiated tips. What does this mean to you? You and your team can get to work faster without having to manually initiate or re-initiate tips.

Maximize Tooth Whitening Patient Results and Revenue
Epic White 2Go is easy to use for both your patients and staff—putting you on the fast track to growing revenue.

Specifications:

GENERAL

• Dimension (W x L x H) : 5.7 in x 6.5 in x 4.4 in (14.5 cm x 11.2 cm x 16.5 cm).
• Weight : 2.5 lbs / 1 kg.

ELECTRICAL

• Operating voltage : 100V –  240V ~ at 1.5A.
• Frequency : 50 / 60 Hz.
• External Fuses : None.
• Main control : Main Power Switch (ON/OFF Control Button).
• Remote Interruption : Remote interlock.
• Disable Control : Emergency Stop Button.
• Battery : Lithium Ion Rechargeable, 14.4 V, 2.9 Ah.
• DC Power Supply Module : 12V DC, 5 A.

LASER

• Laser Classification : IV (4).
• Medium : InGaAsP Semi-conductor diode.
• Wavelength : 940 ± 10 nm.
• Max Power Output : 10W.
• Power Accuracy : ± 20%.
• Power Modes : Continuous, Pulse Modulation.
• Fiber Tips Diameter : 200μm, 300 μm, 400 μm.
• Pulse Duration : 0.01 ms – 20 ms.
• Pulse Interval : 0.01 ms – 20 ms.
• Pulse Repetition Rate : Up to 20 kHz (for reference).
• Spot Size : – Surgical Handpiece  400 μm (maximum in contact mode).
• Deep Tissue Handpiece 30 mm diameter = 7.1 cm2 area.
• Whitening Handpiece  Rectangular 35mm x 8mm = 2.8cm2
• NOHD : 2.7 meters.
• Beam Divergence : 8- 22° per side angle.
• Standard Fiber Cable Length : 5 feet (1.524 meters).
